Wheel Blast Deburring

Wheel Blasting Equipment

Contact Us Today

Wheel Blast Equipment propels abrasive grain against the work piece by means of centrifugal force delivered by a motorized blast wheel(s), or by high velocity compressed air, in an air blast operation.

Generally, air blast applications involve fragile parts, and lower volume production requirements. Equipment is available in many sizes and can be fitted with single or multiple blast nozzles. Glass beads, aluminum oxide, or other abrasive aggregate is typically used in this application.

Your One Stop Shop

The work pieces for blasting, and production output often determines the best type, and capacity of equipment that is most appropriate.

Industries Served:

  • Alloy Foundries
  • Automotive
  • Coating industries
  • Die Casting
  • Electronics
  • Machine Shops & Metal Working
  • Steel fabricators
  • Shot peening
  • Transportation

Abrasives for wheel blast or air blast operations:

  • Shot (cast/spherical): Carbon Steel, Stainless Steel, Zinc, Aluminum, Plastic
  • Grit (crushed/angular): Carbon Steel, Chilled Iron
  • Pellets: Zinc, Aluminum, Copper, Plastic
  • Cut Wire Shot: Stainless Steel, Carbon Steel, Zinc, Aluminum, Nickel alloys
  • Natural Media: Crushed Walnut Shells, Fruit Pits, Corn Cobs

Air Blast Tumble Equipment

1.5, 2.5, 3.0, or 6.0 (Cu. Ft. Capacity Models)

Mill-driven tumble blast machines with oscillating nozzles and cyclone separator and rubber lined chamber.

  • Standard Equipment Includes:
    • Oscillating Nozzles
    • Cyclone Separator
    • Barrelhead Liner
    • Rubber Lined Door
    • Mill Drive Motor with Mill Jam Protection Sensor
    • Hour Meter
    • Push Button Powered Door
    • Timer
    • Pneumatic Locking Door
  • Options:
    • Dust Collector (Required)

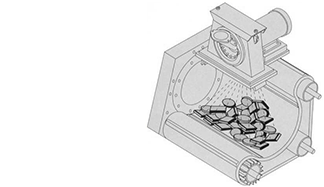

Wheel Blast – Tumble Blast Equipment

1.5, 2.5, 3.0, 6.0, 12, 24 (Cu. Ft. Capacity Models)

  • Standard Equipment Includes:
    • Direct Drive Blast Wheel(s)
    • Various Size Load Capacities
    • Continuous Molded Rubber Mill or Steel Flight Mill Belts
    • Mill Drive Motor with Mill Jam Protection
    • Reversing Mill * Mill Bypass
    • Automatic Timer Controls *10″ Airwash
  • Options:
    • Dust Collector (Required)
    • Rotary Screen
    • Air Powered Vertical Door
    • Variable Frequency Drive Blast Wheel
    • Mill Delay Timer

Swing Table Blast Equipment

36, 48, 60 (Inch Diameter Table)

  • Standard Equipment Includes:
    • Direct Drive Blast Wheel(s)
    • Various Table Load Capacities
    • Blast Cycle Timer
    • Hour and Amperage Meters
  • Options:
    • Cast Alloy Cabinet Liners
    • Rotary Screen Separator
    • Variable Frequency Drive Blast Wheel(s)

Table Blast Equipment

36, 48, 60, 72, 84 & 96 (Inch Capacity Models)

  • Standard Equipment Includes:
    • Direct Drive Blast Wheel(s)
    • Various Table Load Capacities
    • Blast Cycle Timer
    • Hour and Amperage Meters
  • Options:
    • Cast Alloy Cabinet Liners
    • Rotary Screen
    • Variable Frequency Drive Blast Wheel

Spinner Hangers

12” x 24”, 12” x 44”, 24” x 48”, 24” x 60”, 24” x 72”, 36” x 72”

  • Standard Equipment Includes:
    • Direct Drive Blast Wheels
    • Dual Chambers for Continuous Production
    • Cast Liners on Chamber Walls
    • Multiple Indexing
    • Various Hook Capacity (depending on model)
    • PLC Programmed
  • Options:
    • Variable Frequency Drive Blast Wheels
    • Rotary Screen

Hanger Table Blast

60” x 84”, & custom designed to your specifications

  • Standard Equipment Includes:
    • Direct Drive Blast Wheels
    • Various Sized Work Table and/or Hook Weight Capacities
    • Blast Cycle Timer
    • Hour and Amperage Meters
  • Options:
    • Monorail Systems
    • Variable Frequency Drive Blast Wheels

Cylinder Blasters

Consult our sales department for exact specifications and proper equipment for your application.

  • Sales of All Aftermarket Parts
    • Blast Wheel Assemblies
    • Mill Belts, Rubber & Steel Flight
    • Elevator Belts
    • Liners for Cabinets
    • Dust Collector Filters, Cartridges, Bags
